TeraPac®3

TeraPac®3 Portable Rugged Hard Drive Array Briefcase - The TeraPac®3 portable storage expansion system is the most versatile removable hard drive storage expansion system for both products and PC systems in general.

SimpleViewer requires JavaScript and the Flash Player. Get Flash.

Customize TeraPac

TeraPac®3 Downloads:
Brochure
Manual



The TeraPac®3 supports 8 removable SATA 3.5” hard drives providing up to 24TB of raw storage and 21TB of Raid 5 protection. These 8 removable drives are connected to the host computer via two eSASx4 supplied cables. These cables connect to a special Raid controller which has been enhanced with external I/O kits. Raid 0 stripping for performance without redundancy or Raid 1 mirror or Raid 5 for failed drive without loss of data protection.  Advanced users can also take advantage of Raid 6 for multiple failed drive support.

The workstations use the HDPac family of removable drive magazines. The HDPac4 four drive magazine is used with the MaxPac X Class. The TeraPac®3 can support two HDPac4 magazines or a single HDPac8 eight drive magazine. If four mirrored pairs of drives are used, the HDPac2 is available. These can be arranged in combination of HDPacs that sum to 8 drives. HDPacs can be shuffled in the TeraPac®3 in any order without loss of data integrity and without concern for mating a particular drive in a particular TeraPac®3 hard drive slot. Furthermore, drives can be shuffled within the HDPac magazine without concern for order or loss of configuration.

The HDPac removable Raid magazines can be interchanged between systems using the LSI and 3Ware family of raid controllers. All information concerning the configuration of your HDPac is encoded on the hard drives so no configuration of the system is required as HDPacs are moved from system to system.

A unique feature of the HDPac is the ability to hot swap individual failed hard drives without having to shut down the system or take them off line. This can be done without removing the HDPac magazine. The individual drives can be removed from the magazine without removing it from the TeraPac®3 or the MaxPac.

Each TeraPac®3 has its own self-contained global power supply, cooling and air filtration system. Also included is a customized Pelican 1430 water tight roller case for transporting the TeraPac®3 system and cables.

Each HDPac4 and HDPac8 hard drive magazine is available with a custom Pelican case which is convenient for transporting secure data separate from the computer or TeraPac®3. The HDPac4 uses a custom Pelican 1300 and the HDPac8 uses a custom Pelican 1400.

SATA hard drives are available in sizes of 500GB, 1TB, 2TB or 3TB. All drives in the same HDPac must be identical size and type.

MaxPac HDPac

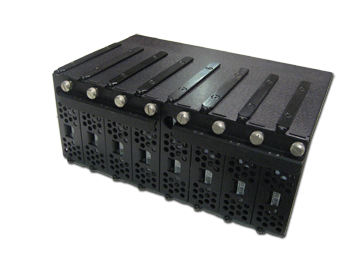

HDPac™ Removable Hard Disk Magazines -The HDPac™ is a family of 3.5” SATA hard drive magazines which allow either 2, 4 or 8 hard drives to be managed as a removable set. These magazines can be installed into the MaxPac® X Class, MaxCube™, MaxRax 3U20 and the TeraPac®3 hard drive expansion chassis.

HDPac2 HDPac4 HDPac8
HDPac2 HDPac4 HDPac8
Customize HDPac Customize HDPac Customize HDPac

The HDPac™ is available in three sizes. The HDPac™2 supports two drives for redundant mirroring (Raid 1) or performance striping (Raid 0). The HDPac™4 supports four drives for either Raid 5 redundancy or Raid 0, streaming stripe performance. Finally the HDPac™ 8 provides a single eight drive removable magazine which can be configured as JBOD, Raid 0, 1, 5 or 6.

Any HDPac size can be installed into any system of equal or greater drive slots.  For example, a 4 drive backplane used in the MaxPac X Class workstation could support either two HDPac2 magazines or a single HDPac4.  An eight drive backplane could support any combination HDPac's whose drive count was equal to or less than eight.  For example four HDPac2 magazines could be used or two HDPac2 units and a single HDPac4 or two HDPac4 units or a single HDPac8.

All drives in a given magazine must be the same size to ensure proper RAID performance. Drives may be selected from 500GB, 1TB, 2GB or 3TB 7200rpm SATA drives. This provides up to 24TB of raw storage in an HDPac™ 8.

Because of the value of the SATA hard drive technology and relatively low price of the HDPac™ system, HDPac™ s using Raid 5 redundancy are an excellent choice for data backup and even archive applications. Because all RAID setup data is storage on the drives within the HDPac™, they can be moved between systems without complications. There is no setup or format issues so long as supplied Raid controllers are used in the host computer.

HDPac™ s can be used on any system with an open PCI-X or PCIe x4 or larger slot. It does not have to be a portable system to be of value.

HDPac™ 4 and HDPac™ 8 magazines can be transported using custom water tight transport cases which are designed to allow the units to survive being dropped in the water or dropped onto concrete from heights of over 3 feet.

Please call 800.533.5805 or 256.772.3058 for quote
