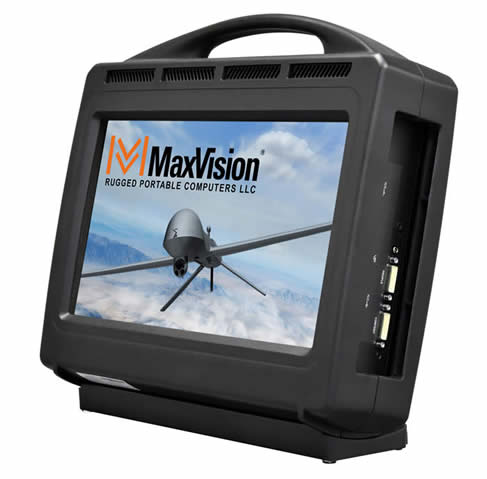

MaxPac C-Class 8010C

The MaxPac® 8010C is the newest and smallest member of the MaxPac family of portable workstation products. This MaxPac® is a semi-rugged, commercial, portable computer workstation providing a low cost way to support two PCIe cards (one PCIe2.0 x4 and one PCIe x1). The “box-in-box shock isolation system”™ allows the product to survive most drops, while the durable polyurethane case can handle the scuffs and bumps of travel. For freight transportation, a custom Pelican transit case provides room for the computer, keyboard/mouse, and cables.

The C-Class is ultra quiet and ultra light, on par with a notebook PC, yet supports the integration of PCIe option cards. This product is ideal for video and data capture applications, that require custom PCIe interface cards.

Ivy Bridge Intel processor technology supporting up to 4 cores and 8 threads, Motherboard = Intel DQ77KB, Processor = i7 3770T (45W)

8GB of DDR3 memory

1366x768, 15.6” LCD display with LED backlight driven from
internal Intel® Ivy Bridge graphics via LVDS internal connection

One full height PCIe x4 card slot

One half height PCIe x4 card slot and one half height PCIe x1

Two GbE RJ45 Ports

4 external

4 on internal headers on the motherboard

HDMI and Display Port available for support of external monitors

1/8” headphone jack plus internal speakers

Two removable, 2.5” HDD or SSD drives

Optional, 5 wire resistive

0-12 degrees

Integrated full range global power supply can operate from any AC power source from 85 to 264VAC @ 47 to 63Hz
