COMPARE
AND
CONFIGURE |

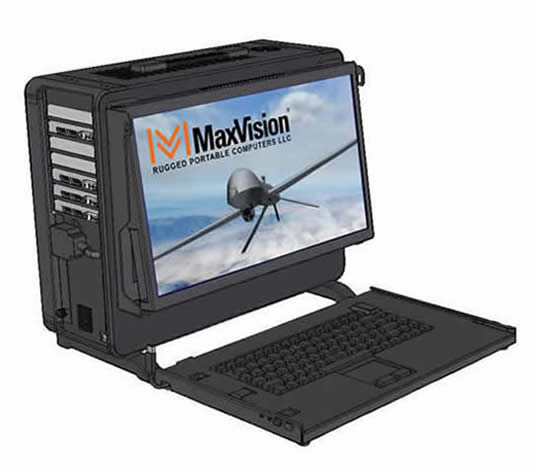

MaxPac® 8000 ML1 |
MaxPac® 8000 ML2 |
MaxPac® 8000 ML3 |
Single 17.3" Display |
Dual 17.3" Display |
Triple 17.3" Display |
 |
 |
 |
Processor/Motherboard |
Intel Xeon E5-1650 processor clocked up to 3.8GHz, SuperMicro X9SRL (E5-1660 optional). |
Memory |
Up to 64GB DDR3 1600 MHz ECC unbuffered or 256GB Registered Memory. |
LCD Display Size |
Single, dual or triple 17.3” 1920 x 1080 LCD (LED backlit). |
LCD Monitor Specifications |
Brightness: 250mcd/m2, Viewing Angle: 70/160; Contrast Ratio: (1000:1) Response Time: 5ms;16.7 million colors. |
Video Controller Options |
nVidia K2000, K4000, K5000, GTX650ti, GTX660ti, (others by request). |
Std I/O Interfaces |
Dual Gigabit Ethernet Ports, 4x USB 2.0 external, 4x USB 2.0 internal headers,
PS/2 keyboard/mouse ports, COM port external, basic Matrox VGA (not typically used). |
PCI Expansion slots |
Two PCI-E 3.0 x8 (in x16 ), Two PCI-E 3.0 x8 slots, Two PCI-E 3.0 x4 (in x8), one PCI-E 2.0 x 4 (in x 8). All slots full length full height. |
Removable Hard Drive Magazine |
HDPac 8 drive 2.5” HDD or SSD magazine allows removal data drives without tools in less than 10 seconds. In an alternated configuation up to four SAS drives can be installed in the removable data drive magazine. Dual 2.5” system drive magazine supports single or mirrored drives. |
Hard Drive Capacity and Performance |
In the eight data drive SATA configuration, eight 9.5mm SATA drives can support 8 x 1TB Hybrid HD or 8 x 800GB SSD. (SSD sizes from 80GB to 800GB using Intel S3500/3700). In the four data drive SAS configuration, four 15mm 2.5” SAS drive @ up to 900GB each |
Hard Drive Interfaces |
SATA 6.0 supporting software RAID 0, 1, 5, 10 or hardware RAID 0, 1, 5, 6, 10 (optional). |
Optical Drive |
SATA slim line slot loading DVD/CD writer or SATA slim line slot load Blu-ray writer. |
Power Supply |
600 Watts 90-264VAC 50/60Hz and 400Hz. |
Software OS |
Windows 7 Pro or Ultimate, Windows 2008 Server, Red Hat & SUSE Linux. |
Size Closed |
ML1: 17”W x 14.6”H x 7.2”D |
ML2: 17”W x 17.6”H x 8.3”D |
ML3: 17”W x 14.6”H x 9.4”D |
Size Setup (displays unfolded) |
ML1: 17”W x 14.6”H x 7.2”D |
ML2: 32.1”W x 14.6”H x 8.3”D |
ML3: 47.6”W x 14.6”H x 9.4”D |
Keyboard/Mouse |
Microsoft 600 keyboard (USB) Logitech m110 mouse (USB or PS2). |
Environmental |
Environmental: 0°C to 50°C/10% to 90% relative humidity (non-condensing) operating in dirty air conditions, FCC Class A. When stored in the provided transit case, the product can withstand MIL STD 810G -40°C to 70°C storage temperature, blowing rain, salt fog, sand, dust, vibration for two wheel trailer and drops from 30”. |
Regulation |
FCC Class A , CE. |
Transit Case |
Custom watertight Roller Case (also stores keyboard, mouse and cables). |
Weight |
Single display approximately 41Lbs (w/ case 74Lbs); Dual display approximately 48Lbs (w/ case 82 Lbs); Triple display approximately 55 lbs (w/ case 90Lbs). |
|
MaxPac® 8000 ML1 |
MaxPac® 8000 ML2 |
MaxPac® 8000 ML3 |
Single 17.3" Display |
Dual 17.3" Display |
Triple 17.3" Display |
 |
 |
 |
