MaxPac 8000 SL
The MaxPac® 8000SL is a rugged portable workstation featuring a single Xeon E5-1600 processor, seven PCIe slots, up to 16TB of removable data storage, and your choice of one, two, or three 21.5” 1920 x 1080 LED backlit LCD displays. The MaxPac 8000SL is designed for easy access and service. It operates between 0 to 50C in dusty environments and when stored in the provided transit case meets MIL STD 810G for drop, vibration, temperature, humidity, salt fog, rain, sand, dust, and altitude specifications. There are two removable disk drive configurations optimized for either four 3.5” data HDD magazine, or a flexible 2.5” data magazine which supports eight (9.5mm) SATA 6.0 SSD or Hybrid disk or four (15mm) SAS drives (FIPS 140-2 optional). Both system have two additional 2.5” system disks contained in a single removable magazine which can be either HDD, SSD or Hybrid HDD technology. Optional MegaRAID 9270-8i for hardware RAID. |
|

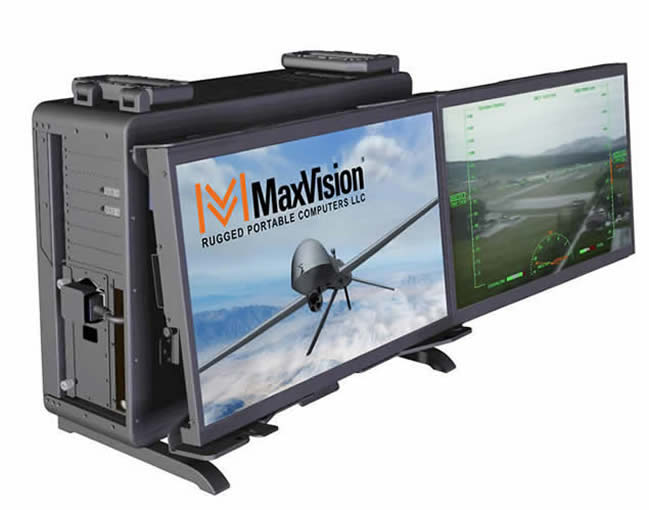

SL shown with dual displays
|
The MaxPac 8000 SL Class family provides the following configuration choices:
- Intel® Xeon® E5-1650 Processor (E5-1660 optional)
- Motherboard - Sumermicro X9SRL
- 4 x 3.5" removable HD up to 16 TB or 8 x 2.5" removable HD
- Single, Dual, or Triple 21.5" Displays
- Choice of nVidia Quadro PCIe Graphics (k2000, k4000, and k5000), or GeFOrce GTX 650ti, 760, or 770
- Optional internal UPS and support for 28VDC as well as full range AC power all in the same workstation.
- FCC and CE certifications
8000 SL Class Downloads:
8000 SL Images
8000 SL Spec Sheet
|

|
COMPARE
AND
CONFIGURE |
MaxPac® 8000 SL1 |
MaxPac® 8000 SL2 |
MaxPac® 8000 SL3 |
Single 21.5" Display |
Dual 21.5" Display |
Triple 21.5" Display |
 |
 |
 |
Processor/Motherboard |
Intel Xeon E5-1650 processor clocked up to 3.8GHz, SuperMicro X9SRL (E5-1660 optional). |
Memory |
Up to 64GB DDR3 ECC unbuffered or 256GB Registered Memory. |
LCD Display Size |
Single, dual or triple 21.5” 1920 x 1080 LCD (LED backlit). |
LCD Monitor Specifications |
Brightness: 250mcd/m2, Viewing Angle: 170 L-R/160 U-D; Contrast Ratio: (1000:1) Response Time: 5ms;16.7 million colors. |
Video Controller Options |
nVidia K2000, K4000, K5000, GTX650ti, GTX760, GTX770 (others by request). |
Video Projection Ports |
Optional HDMI out port on each of the HD displays. (Can only be used with video cards supporting DVI or HDMI outputs). |
Std I/O Interfaces |
Dual Gigabit Ethernet Ports (Intel 82574), 2x USB 2.0 external, 4x USB 2.0 internal headers, PS/2 keyboard/mouse ports, COM port external, basic Matrox VGA (not typically used), internal TPM (optional). |
PCI Expansion slots |
Two PCI-E 3.0 x8 (in x16 ), Two PCI-E 3.0 x8 slots, Two PCI-E 3.0 x4 (in x8), one PCI-E 2.0 x 4 (in x 8). All slots full length full height. |
Removable Hard Drive Magazine |
HDPac4™ magazine allows removal of all four 3.5” data drives without tools in less than 10 seconds. Dual 2.5” system drive magazine supports single or mirrored drives. Optional eight data drive 2.5” magazine for SSD arrays. |
Choice of removable Data Hard Drive Magazines; Capacity and Performance |
- Four 3.5” HDDs 7200rpm supporting 1, 2, 3 or 4TB data drives for a total up to 16TB of data.
- Eight 2.5” data drive SATA configuration supports eight 9.5mm SATA drives with capacity of 8 x 1TB Hybrid SSHD or 8 x 800GB SSD. (SSD sizes from 80GB to 800GB using Intel S3500/3700).
- In the four data drive SAS configuration, four 14mm 2.5” SAS drive (FIPS 140-2 optional) @ up to 900GB each.
|
Hard Drive Interfaces |
SATA/SAS supporting software RAID 0, 1, 5, 10 or hardware RAID 0, 1, 5, 6, 10 (optional). Optional MegaRAID 9270-8i for hardware RAID. |
Optical Drive |
SATA slim line slot loading DVD/CD writer or SATA slim line slot load Blu-ray writer. |
Power Supply |
600 Watts 90-264VAC 50/60Hz and 400Hz. |
Software OS |
Windows 7 Pro or Ultimate, Windows 2010 Server, Red Hat & SUSE Linux. |
Size Closed |
SL1: 20”W x 15.8”H x 7.2”D |
SL2: 20”W x 15.8”H x 8.3”D |
SL3: 20”W x 15.8”H x 9.4”D |
Size Setup (displays unfolded) |
SL1: 20”W x 15.8”H x 7.2”D |
SL2: 40”W x 15.8”H x 7.83”D |
SL3: 59.1”W x 15.8”H x 9.4”D |
Keyboard/Mouse |
Microsoft 600 keyboard (USB) Logitech m110 mouse (USB or PS2) |
Environmental |
Environmental: 0°C to 50°C/10% to 90% relative humidity (non-condensing) operating in dirty air conditions, FCC Class A. When stored in the provided transit case, the product can withstand MIL STD 810G -40°C to 70°C storage temperature, blowing rain, salt fog, sand, dust, vibration for two wheel trailer and drops from 30”. |
Regulation |
FCC Class A , CE. |
Transit Case |
Custom watertight Roller Case (also stores keyboard, mouse and cables). |
Weight |
Single display approximately 41Lbs; Dual display approximately 48Lbs; Triple display approximately 55 lbs. |
|
