The MaxCube™II provides the following features and configuration choices:

• Two Intel quad-core or hex-core Xeon processors for up to twelve 64-bit CPU 'cores'
• Eight removable 3.5" SATA hard disks, configured in a variety of quick eject magazines. Supports high performance RAID 0, 1, 5 & 6. Supports up to 2TB hard disks.
• Supports the following input power: 90 - 264VAC@ 50-400Hz, 90-380VDC, 28VDC
• Provides an option for integrated UPS, assuring continuous operation at full load for up to 5 minutes.
• Operates over the full range of 0-50°C
• Patented 'desert proven' air filtration eliminates nearly all small particle dust in heavy load environments with nearly no back pressure. Filters all components, even the optical disk
• Two redundant removable 2.5" SATA system disks configurable as a mirror RAID 1.
• Option of either DVD double layer burner (8.5GB) or BlueRay (50GB) optical drive. Each is interchangeable and removable.
• One PCIe 2.0 x8(x16 Mech)Slot
• Two PCIe x4(one used for RAID controller)
• One PCIe x8
• Two PCI 32 bit slots
• Two GbE network connections
• Four USB 2.0
• Optional 13.3" 1280 x 800 resolution LCD
• Rugged aluminum chassis

MaxCube™ Downloads:

MaxCube II Spec Sheet

MaxCube II Images

No other server has the density, processing performance, tolerance to dust and heat, and the rich set of standard features that are integrated into the MaxCube™II.

Designed for service, the MaxCube™II can be accessed and serviced with minimal tools, with no tools needed for most tasks.

The HDPac™ removable hard drive magazines are available in 8, 4 and 2 drive configurations. The 2 and 4 drive configurations can be mixed and matched in the removable drive backplane. This allows for one 8 drive HDPac™ magazine, two 4 drive HDPac™ magazines, four 2 drive HDPac™ magazines or a mix of two 2 drive and one 4 drive magazines, allowing the maximum flexibility in managing your high performance, high capacity RAID storage requirements. The LSI 9260 series of RAID controllers provides the highest performance, maximum flexibility SATA RAID processing available. The entire unit can fit into a single waterproof transit roller case that can be pulled effortlessly using the attached handle. It can be shipped as checked luggage or sent via express courier such as FEDEX.

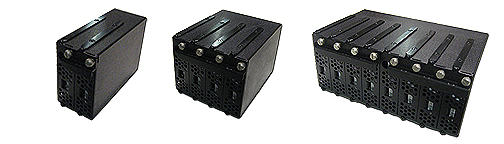

HDPac™ Family is availiable in 3 configurations: 2, 4, and 8 Drive arrays

Suitable for both military and commercial use, the applications vary from military servers, network attached storage, and workstations with detached displays. Commercial applications include Digital Disk Recorders for HD video and cinematography applications and simulations.

The MaxCube’s small size and flexible power with internal UPS makes it an ideal platform for massive parallel computing applications. Because the volume and size is so small, 9 MaxCubes can be stacked into little more than 1 meter of desk top and take as little as 1/3 of a cubic meter of volume. Maximum weight per cube is 45 pounds and easily managed by one person.
