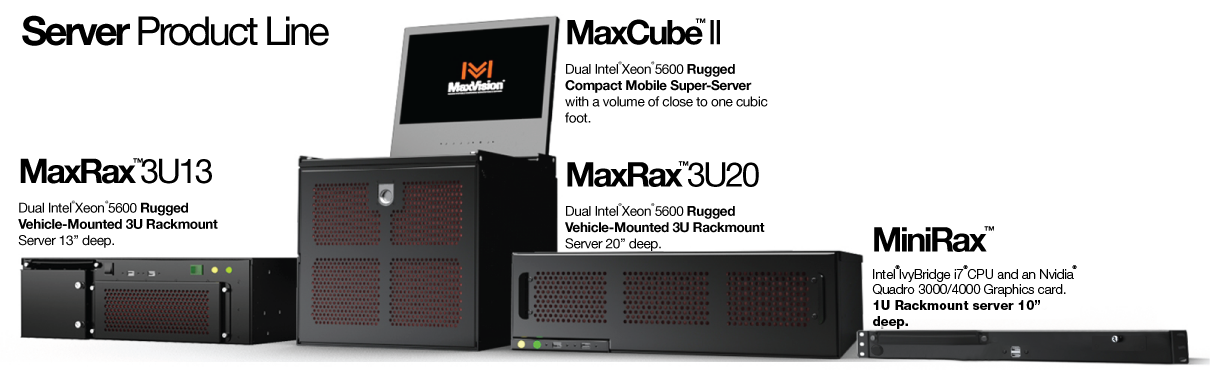

MaxRax 8250 3U13

MaxVision’s state-of-the-art dual processor Xeon server packaged in a 3U rack mount package is only 13” deep. Ideal for ship, aircraft and wheeled vehicle applicatons.Designed to deliver outstanding performance in harsh environments, including command vehicle and shipboard conditions.

The MaxRax 8250 3U13 features dual Xeon E5-2660 processors, dual mirrored 2.5” system drives in a single removable hard disk magazine, along with a separate 8-drive removable magazine holding eight 2.5” data drives (ten total 2.5” HD, hybrid or SSD SATA drives). Four PCIe option slots provide for expansion.

Optional MaxUPS integrated UPS provides backup power while operating on all global power sources (90 to 264VAC, 47 to 400Hz). MaxUPS also supports operating from 28VDC vehicle power while using the internal UPS battery as a 28VDC backup.

Two Gbit LAN, PS2, four USB 2.0 (2 front, 2 rear)

Three PCI-E 3.0 x8, one PCI-E 2.0 x4 (in x8)

Onboard Matrox G200eW (optional nVidia Quadro or GeForce series graphics card; occupies first PCIe slot if used)

IPMI (Intelligent Platform Management v2) with KVM support and dedicated LAN

650 watt; Input = 90 to 264 VAC 50/60 Hz, or 115 VAC @ 400 Hz

Supports backup from all known global power sources yielding 75 WHr of energy. Provides support for 28 VDC with UPS backup. LiFePO4 battery technology is United Nations certified for safe airline transport
